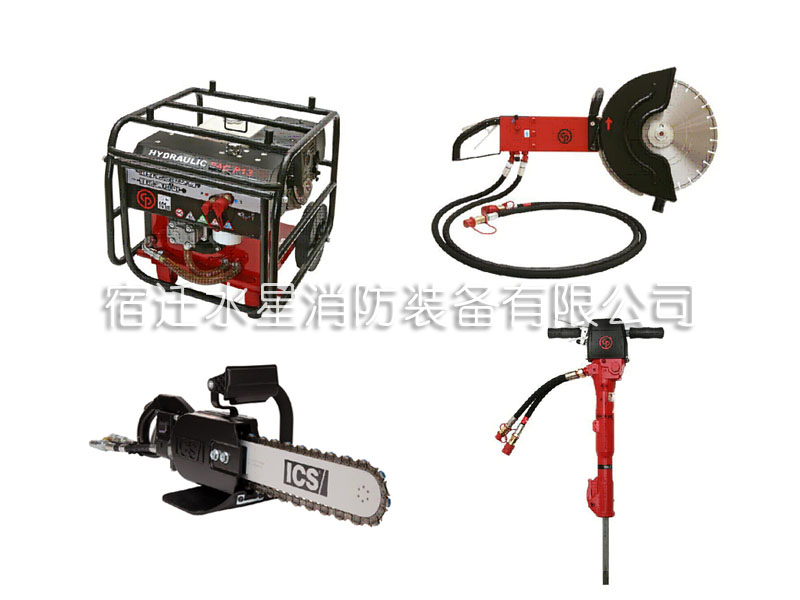

Concrete hydraulic rescue tools group

Place of origin

USA

Parameter

Hydraulic power station:
Power: 14 hp Robin engine
Weight: 91kg
Output pressure: 155bar
Output flow: 20-30lpm
Gasoline Fuel tank capacity 6.5L
SPL:. 92db hydraulic oil contamination display table
Dimensions: 705x600x745
Connection: flat quick coupling
Performance: Fuel low oil level protection, light weight, convenient, low noise

Handheld light hydraulic hammers
Impact energy: up to 25J
Flow range: 20 L / min
Weight: 12.6kg
Working Pressure (bar): 70-90
The maximum back pressure (bar): 10
Impact frequency (beats / min): 2400

Hydraulic Diamond Chain Saw
ICS is the US company's latest design for the fire and rescue hydraulic chain saw, cutting depth of 380mm. Hydraulic diamond chain saw, capable of cutting concrete, reinforced concrete, plumbing, masonry, stone, and other stone, flow 30lpm, transverse cutting capacity;

Hydraulic disc saws
Flow range: 18-30 l / min
Weight: 9.8kg
Blade diameter: 355mm
Cutting depth: 130mm
Maximum pressure (bar): 170
Speed (r.p.m): 2500-4000
Built-in water supply valve, diamond and diamond saw blade can be used

Use

Various concrete obstacle for rescue
