Products

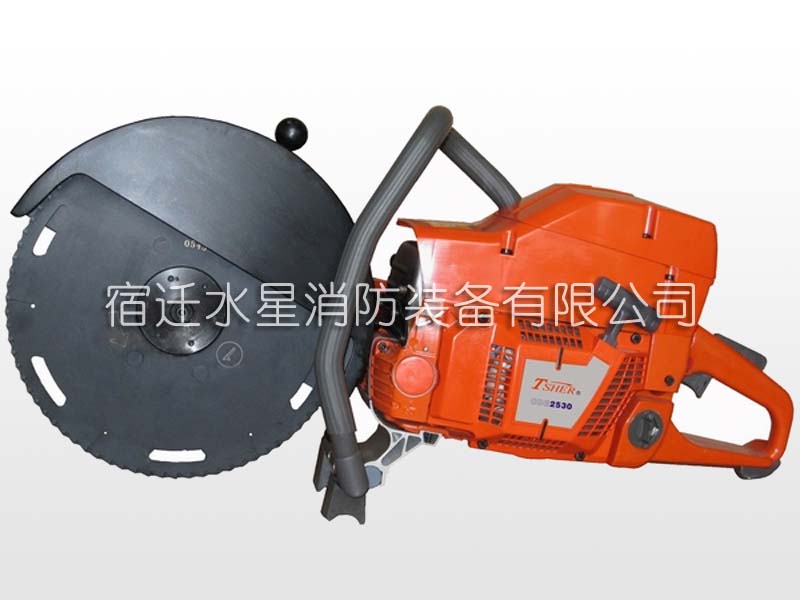

Iso-wheel-cut saws
Origin of
joint venture
Parameter
Easy cutting all kinds of mixed materials, including steel, copper, aluminum, wood, plastic, cable, automotive glass lamp. Two saw reverse rotary cutting make the whole cutting process without recoil. The object to be cut without burr, nor because of friction due to cutting surface oxide layer
Cylinder displacement（CC） | 70.7 | weight（kg） | 11.0 |
Bore（mm） | 50 | Fuel tank volume（L） | 0.77 |
Piston stroke（mm） | 36 | Oil pump capacity（mL） | 4-20 |
Standard idle（rpm） | 2700 | Oil tank capacity（L） | 0.42 |
Max speed（rpm） | 13500 | Oil pump | 自动供油 |
power（kw） | 3.9 | Noise level（dB） | 114 |
Ignition manufacturer | SEM | Carburetor manufacturer | Walbro |
Spark plug type | Champion RCJ-7Y | Blade size（mm） | 310 |
Spark plug gap（mm） | 0.5 | Cutting depth（mm） | 110 |
Purpose
Widely used in fire fighting and rescue, rescue and relief, Luqiao construction, road maintenance, house demolition, electric power repair and other mobile field operations
